1412T Tracked Impact Crusher

×

Click / Tap to enlarge.

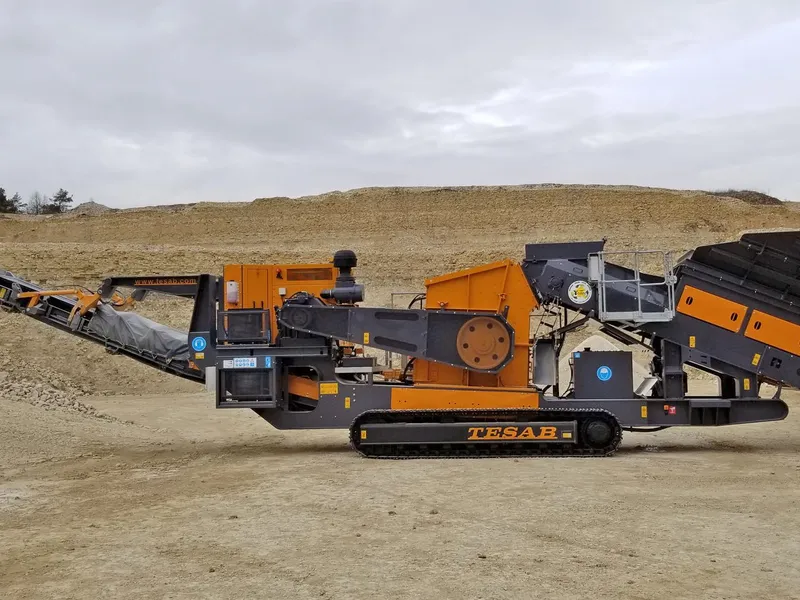

The Tesab 1412T Tracked Impact Crusher emerges as a large secondary impact crusher, engineered to accommodate a vast array of material dimensions while also offering a superior, cubical shaped output. This tracked impact crusher boasts a heavy-duty feed hopper and belt feeder design, amplifying its robust feature set. The standout trait of the 1412T model is the crusher unit, which is fitted with a 1200mm (47-inch) rotor that incorporates the exclusive Tesab crushing path design. This distinct design results in a superior reduction ratio, making the 1412T an indispensable tool in heavy crusher equipment industry. Specifically tailored to cater to both secondary and tertiary applications, the 1412T Tracked Impact Crusher exhibits remarkable versatility. It can function effortlessly as a standalone unit, or it can be seamlessly incorporated into existing crushing and screening operations. This unique feature amplifies its usability for large industrial operations, thus making it a sought-after model in its category.

Key Features

Specifications

Working Dimensions
Width 3850mm (12’7″)
Length 17,030mm (55’10”)
Weight (Est) 42,700kgs (94,137Ibs)
Transport Dimensions
Height 3560mm (11′ 8″)
Width 3200mm (10’6″)
Length 15,100mm (49’7″)
Feeder Belt
Yes
Engine Size
CAT C13 (Tier 3 / Tier 4)
Reduction Ratio
Up to 20:1
Max Feed Time
300mm (12″)
Production Rate
350+ TPH *
